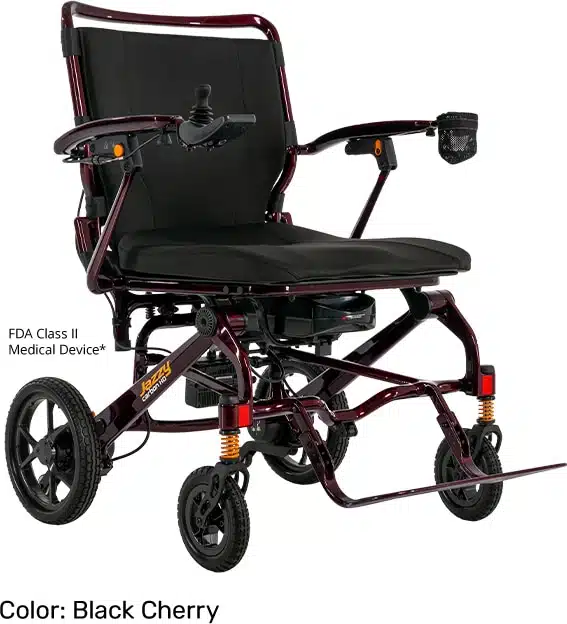

Jazzy® Carbon HD

Heavy-duty mobility
meets lightweight mobility.

The wait is over for a travel friendly, heavy-duty, power wheelchair built for portability. The Jazzy^® Carbon HD offers a 400-lb. weight capacity, weighs 32.2 lbs. without the battery, has a durable carbon fiber frame, and gives you a greater level of independence throughout your travels.

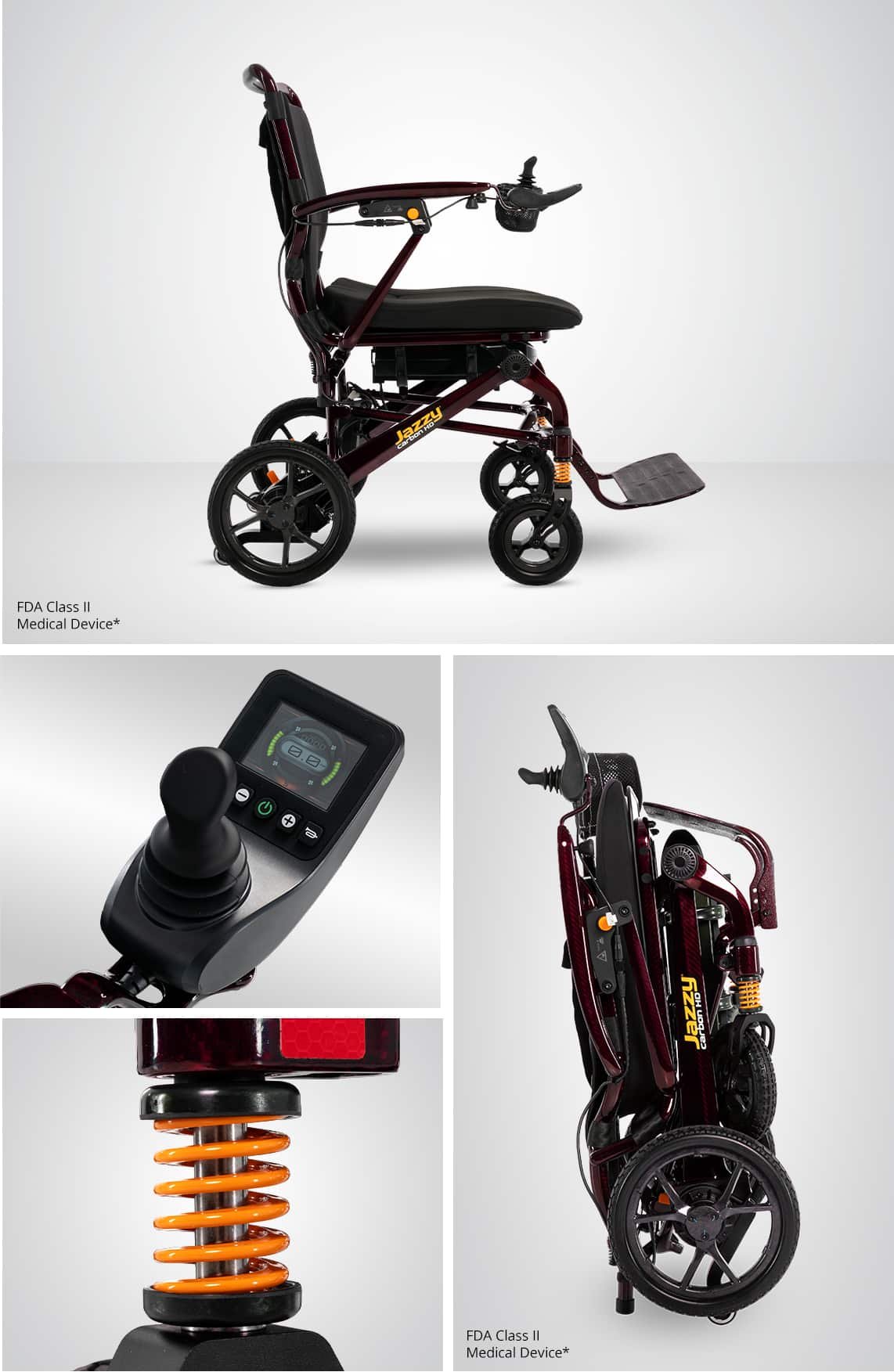

Easy to fold, easy to lift, easy to transport.

The Jazzy^® Carbon HD folds in just a few seconds and locks securely into position. It is also one of the lightest models in the Pride^® Mobility fleet and engineered for convenient storage and transport. When it comes time to ride again, it is just as easy to unfold and go.

Your comfort is paramount.

The roomy 20 x 20” seat, adjustable padded seat back, removable cushion, and extra-wide adjustable foot platform are designed for your comfort. It also has front and rear suspension providing a smooth ride over varied terrain. Jazzy^® is known for world-class quality, a commitment to the industry’s most rigorous testing standards, and proven performance over three decades. You will get all of that with the Jazzy^® Carbon HD! Travel worry-free and experience the best in lightweight portability!

Jazzy^® Carbon HD Features:

• Unit weighs 32.2 lbs. without the battery
• 400-lb. weight capacity
• Durable carbon fiber frame
• Front and rear suspension
• Top speed of up to 3.7 mph
• Battery range of up to 12.4 miles
• 20″ x 20″ seat
• Easy fold design that locks into folded position
• Folded dimensions: 31.3” L x 26.4” W x 13 H
• Flip up lightweight carbon fiber arms
• Padded seat back with removable cushion
• Extra-wide adjustable foot platform 17.25” W x 5.9” D
• 20 Ah lithium battery (standard)
• Storage pocket on back of seat
• Quick disconnect LCD joystick with digital display, USB-C port & puddle light
• Mesh cup holder, cushion, and adjustable lap belt, (standard)
• K0899 Power Mobility Device, not coded by DME PDAC or does not meet criteria.
• Available Colors: Black Cherry, Night Sky


  CATEGORY	SPECIFICATION
  Model	Jazzy® Carbon HD
  Weight Capacity	400 lbs.
  Maximum Speed1	Up to 3.7 mph
  Ground Clearance3	1″ at motor
  Turning Radius3	36.4″
  Overall Length3	36.81″
  Overall Width3	26.4″
  Suspension	Full Front and Rear Suspension
  Front Wheels	6.5″
  Rear Wheels	10.6″
  Range per Charge1,2	Up to 12.4 Miles per charge
  Product Weight Without Batteries3,5	32.2 lbs. without batteries
  Standard Seating3	Dimensions: 20″ x 20″ seat Seat sling with removable cushion
  Folded Dimensions	31.3″ L x 26.4″ W x 13″ H
  Drivetrain/Motor Output	24V 250W Brushless motors
  Braking System	Regenerative and electromechanical
  Battery Requirements	Type: Lithium battery box Size 20 Ah
  Battery Weight4	7.5 lbs.
  Battery Charger	2 Amp
  HCPCS Codes	K0899 Power Mobility Device, not coded by DME PDAC. DME providers are responsible for determining appropriate billing codes when submitting for insurance reimbursement. HCPCS codes provided should not be considered as legal advice and not guarantee reimbursement. Payer coding, coverage and bundling guidelines may apply.
  Warranty	Frame: 5-year Electronics: 1-year limited Drivetrain: 1-year limited Battery: 1-year limited
